BFR35APE6327HTSA1 | Infineon Technologies

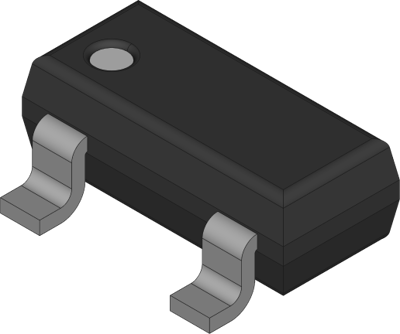

Bipolar junction transistor, NPN, 45 mA, 15 V, SMD, SOT-23, BFR35APE6327HTSA1
Unit Price (€ / pc.)
0.1040 € *
Standard delivery time from the manufacturer is: 8 Weeks
Bipolar transistor, BFR35APE6327HTSA1, Infineon Technologies
Features
- Low current gain
- High collector-emitter breakdown voltage
- Low noise
- Pb-free and RoHs-compliant
Applications
- For low distortion broadband amplifiers
- For oscilators
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max.voltage between collector and base Vcbo | 20 V | |
| max. operating temperature | 150 °C | |
| Max DC amplification | 140 mA | |
| Transit frequency fTmin | 5 GHz | |
| Collector current | 45 mA | |
| min. operating temperature | -55 °C | |
| Power dissipation | 0.28 W | |
| Min DC gain | 70 mA | |
| Assembly | SMD | |
| max.voltage between collector and emitter Vceo | 15 V | |
| Enclosure | SOT-23 | |
| Version | NPN |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 6,000 pieces |
| Customs tariff number | 85412900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
