BFR340FH6327XTSA1 | Infineon Technologies

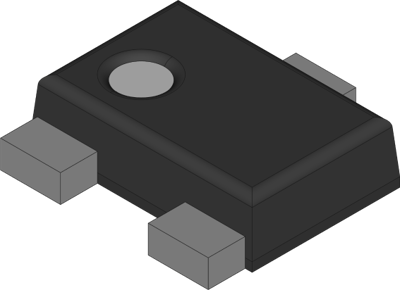

Bipolar junction transistor, NPN, 20 mA, 6 V, SMD, TSFP-3, BFR340FH6327XTSA1
Unit Price (€ / pc.)
0.0933 € *
Standard delivery time from the manufacturer is: 12 Weeks
Bipolar transistor, BFR340FH6327XTSA1, Infineon Technologies
Features
- Low current gain
- High breakdown voltage enables operation in automotive applications
- Low noise
- Pb-free and RoHs-compliant
Applications
- For general purpose low noise amplifier
- Ideal for low current operation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max.voltage between collector and base Vcbo | 15 V | |
| max. operating temperature | 150 °C | |
| Max DC amplification | 160 mA | |
| Transit frequency fTmin | 11 GHz | |
| Collector current | 20 mA | |
| min. operating temperature | -55 °C | |
| Power dissipation | 0.075 W | |
| Min DC gain | 90 mA | |
| Assembly | SMD | |
| max.voltage between collector and emitter Vceo | 6 V | |
| Enclosure | TSFP-3 | |
| Version | NPN |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 60,000 pieces |
| Customs tariff number | 85412900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
