ICE3A1065ELJFKLA1 | Infineon Technologies

AC/DC converter, PDIP-8, ICE3A1065ELJFKLA1

Order No.: 88S8396
EAN: 4099879096876
MPN:
ICE3A1065ELJFKLA1
SP000430884
ICE3A1065ELJFKLA1 Infineon Technologies A/D Converters

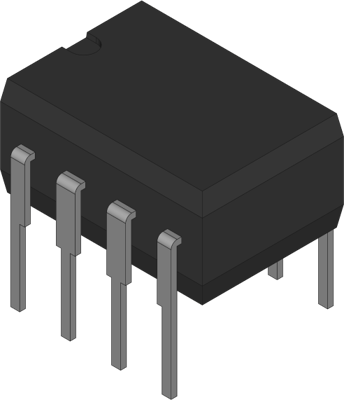

Image may differ
Unit Price (€ / pc.)
1.1305 € *
Available: 0 pcs.
Leadtime: 13 Weeks **
Total Price:
2,261.00 € *
*incl. VAT plus shipping costs
**Subject to prior sale
2000 pcs.
1.1305 €

AC/DC converter Ics, ICE3A1065ELJFKLA1, Infineon Technologies

The ICE3A1065ELJFKLA1 is target for low power SMPS applications. The converter has implemented some noise resist techniques to the IC such that it is more robust to the system noise which is generated during system ESD test, lightning surge test, transient test, etc.

Features

  • Active burst mode for the lowest standby power
  • Built-in soft start
  • External latch enable function
  • Frequency jitter and soft driving for low EMI

Applications

  • Offline battery adapters
  • Set-top box
  • Auxiliary power supply
  • DVD player and recorder
Technical specifications
Assembly THT
Enclosure PDIP-8
Version AC/DC converter
min. operating temperature -25 °C
max. operating temperature 130 °C
Number of pins 8
Input voltage 26 V
Logistics
Customs tariff number 85423390
Original Packaging Bar with 50 pieces
