IN5426 | IFM electronic
Inductive sensor, PNP/NPN, flush mounting, not flush, 1 Form A (N/O) + 1 Form B (N/C), 36 V (DC), 100 mA, IN5426
Order No.: 82P6214
EAN: 4021179254885
MPN:
IN5426
Unit Price (€ / pc.)
93.4507 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
93.45 € *
Price list
Quantity
Price per unit*
1 pcs.
93.4507 €
3 pcs.
90.8684 €
5 pcs.
88.4289 €
*incl. VAT plus shipping costs
Subject to prior sale

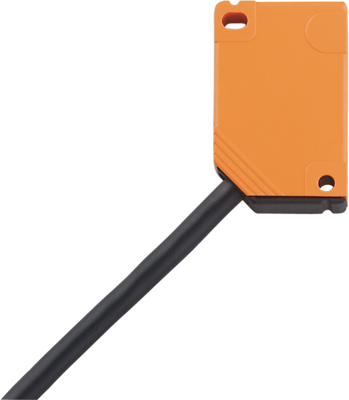

Inductive sensor, IN5426, IFM electronic
Features
- Particularly space-saving rectangular housing
- For use where space is restricted
- Output function normally open / normally closed programmable
- Very high switching frequency
- Two-wire technology
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | 1 Form A (N/O) + 1 Form B (N/C) | |
| Detecting distance | 4 mm | |
| Degree of protection (IP) | IP65/IP66/IP67 | |
| Version | PNP/NPN | |
| Connection | cable, PUR 2x0.5 mm², 2 m | |
| Assembly | flush mounting, not flush | |
| switching current | 100 mA | |
| Switching Voltage (DC) | 36 V | |
| Length | 40 mm | |
| Product type | inductive sensor |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365019 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
