IN5334 | IFM electronic
Inductive sensor, PNP, flush mounting, not flush, 2 Form A (N/O), 36 V (DC), 250 mA, IN5334
Order No.: 82P6206
EAN: 4021179135979
MPN:
IN5334
Unit Price (€ / pc.)
300.9034 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
300.90 € *
Price list
Quantity
Price per unit*
1 pcs.
300.9034 €
3 pcs.
293.0256 €
*incl. VAT plus shipping costs
Subject to prior sale

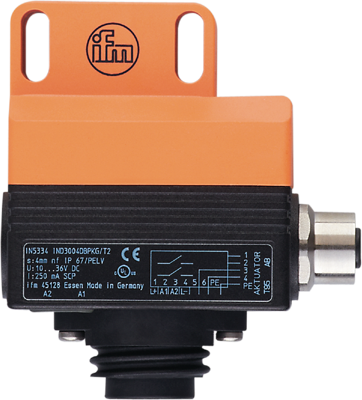

Inductive sensor, IN5334, IFM electronic
Features
- For monitoring valve positions
- For reliable position feedback on valve actuators
- Non-contact and self-cleaning system
- Quick and secure mounting with only three screws
- Direct triggering of the solenoid valve from the sensor
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | 2 Form A (N/O) | |
| Detecting distance | 4 mm | |
| Degree of protection (IP) | IP67 | |
| Version | PNP | |
| Connection | Rd24 plug connector/M12 plug connector | |
| Assembly | flush mounting, not flush | |
| switching current | 250 mA | |
| Switching Voltage (DC) | 36 V | |
| Length | 60 mm | |
| Product type | inductive dual sensor |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365019 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
