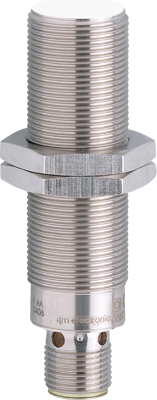

IG6567 | IFM electronic
Inductive sensor, PNP/NPN, flush mounting M18, flush, 1 Form B (N/C), 36 V (DC), 100 mA, IG6567
Order No.: 82P5679
EAN: 4021179117128
MPN:
IG6567
Unit Price (€ / pc.)
81.3246 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
81.32 € *
Price list
Quantity
Price per unit*
1 pcs.
81.3246 €
3 pcs.
77.8022 €
5 pcs.
74.5654 €
*incl. VAT plus shipping costs
Subject to prior sale
Inductive sensor, IG6567, IFM electronic
Features
- High shock and vibration resistance for use in mobile machines
- High noise immunity
- Wide operating temperature range
- High ingress protection for the requirements of harsh environmental conditions
Technical specifications
| Detecting distance | 8 mm | |
| Degree of protection (IP) | IP67/IP69K | |
| Assembly | flush mounting M18, flush | |
| switching current | 100 mA | |
| Length | 70 mm | |
| Product type | inductive sensor | |
| Version | PNP/NPN | |
| Switching Voltage (DC) | 36 V | |
| Connection | M12-connector | |
| Latching switching function | 1 Form B (N/C) |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85365019 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
