IG5792 | IFM electronic
Inductive sensor, PNP, flush mounting M18, flush, antivalent, 36 V (DC), 100 mA, IG5792
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
118.3336 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
118.33 € *
Price list
Quantity
Price per unit*
1 pcs.
118.3336 €
3 pcs.
115.0611 €
5 pcs.
111.9552 €
*incl. VAT plus shipping costs
Subject to prior sale

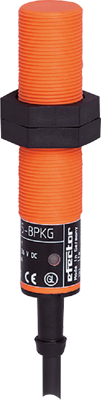

Inductive sensor, IG5792, IFM electronic
Features
- Complementary output function NO/NC
- High protection rating for the requirements of harsh industrial environments
- Very high switching frequency
- Wide operating temperature range
- With long silicone cable for use in high temperatures
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | inductive sensor | |
| Version | PNP | |
| Latching switching function | antivalent | |
| Switching Voltage (DC) | 36 V | |
| switching current | 100 mA | |
| Detecting distance | 5 mm | |
| Assembly | flush mounting M18, flush | |
| Connection | cable, silicone 4x0.34 mm², 6 m | |
| Degree of protection (IP) | IP67 | |
| Length | 80 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | RO |
| Customs tariff number | 85365019 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
