IG5606 | IFM electronic

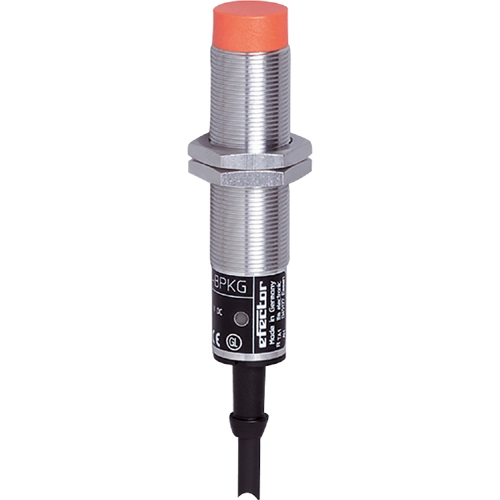

Inductive sensor, PNP, flush mounting M18, not flush, 1 Form A (N/O), 55 V (DC), 250 mA, IG5606
Order No.: 82P5635
EAN: 4021179112635
MPN:
IG5606
Unit Price (€ / pc.)
106.0409 € *
Available: 4 pcs.
Total Price:
106.04 € *
Price list
Quantity
Price per unit*
1 pcs.
106.0409 €
3 pcs.
103.1016 €
5 pcs.
100.3289 €
*incl. VAT plus shipping costs
Subject to prior sale
Inductive sensor, IG5606, IFM electronic
Features
- Robust stainless steel housing for use in harsh industrial environments
- Wide operating temperature range
- High protection rating for the requirements of harsh industrial environments
- With long PVC cable
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | 1 Form A (N/O) | |
| Detecting distance | 8 mm | |
| Degree of protection (IP) | IP67 | |
| Version | PNP | |
| Connection | cable, PVC 3x0.5 mm², 10 m | |
| Assembly | flush mounting M18, not flush | |
| switching current | 250 mA | |
| Switching Voltage (DC) | 55 V | |
| Length | 80 mm | |
| Product type | inductive sensor |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365019 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
