IG0012 | IFM electronic

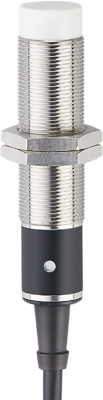

Inductive sensor, brass white bronze-coated, flush mounting M18, not flush, 1 Form A (N/O), 250 V (DC), 100 mA, IG0012

Order No.: 82P5559
EAN: 4021179102858
MPN:
IG0012
IG0012 IFM electronic Proximity Switches, Reed switches
Image may differ
Unit Price (€ / pc.)
144.8111 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
144.81 € *
Price list
Quantity
Price per unit*
1 pcs.
144.8111 €
3 pcs.
140.8008 €
5 pcs.
137.0166 €
*incl. VAT plus shipping costs
Subject to prior sale

Inductive sensor, IG0012, IFM electronic

Features

  • With combined AC/DC output stage
  • Large operating voltage range
  • Two-wire technology
  • Wide operating temperature range
  • Robust metal housing for use in harsh industrial environments
Technical specifications
Switching Voltage (AC) 250 V
Detecting distance 8 mm
Degree of protection (IP) IP67
Assembly flush mounting M18, not flush
switching current 100 mA
Length 80 mm
Product type inductive sensor
Version brass white bronze-coated
Switching Voltage (DC) 250 V
Connection cable, PVC 2x0.5 mm², 2 m
Latching switching function 1 Form A (N/O)
Logistics
Country of origin RO
Customs tariff number 85365080
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
