IF5817 | IFM electronic

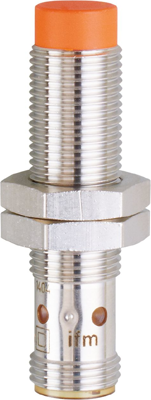

Inductive sensor, PNP, flush mounting M12, not flush, 1 Form A (N/O), 30 V (DC), 200 mA, IF5817
Order No.: 82P5331
EAN: 4021179098779
MPN:
IF5817
Unit Price (€ / pc.)
110.4677 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
110.47 € *
Price list
Quantity
Price per unit*
1 pcs.
110.4677 €
3 pcs.
107.4094 €
5 pcs.
104.5177 €
*incl. VAT plus shipping costs
Subject to prior sale
Inductive sensor, IF5817, IFM electronic
Features
- For a precise position detection on machines
- Wide operating temperature range
- Clearly visible indication of the switching status
- Robust stainless steel housing for use in harsh industrial environments
- Very high switching frequency
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | 1 Form A (N/O) | |
| Detecting distance | 4 mm | |
| Degree of protection (IP) | IP65 | |
| Version | PNP | |
| Connection | M12-connector | |
| Assembly | flush mounting M12, not flush | |
| switching current | 200 mA | |
| Switching Voltage (DC) | 30 V | |
| Length | 50 mm | |
| Product type | inductive sensor |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365019 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
