IF5653 | IFM electronic

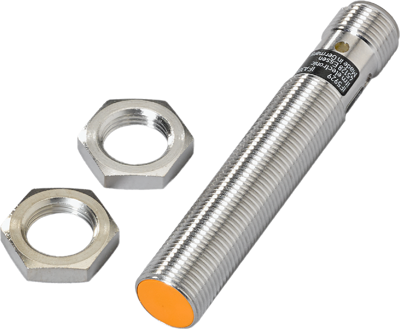

Inductive sensor, PNP, flush mounting M12, flush, antivalent, 36 V (DC), 250 mA, IF5653
Order No.: 82P5307
EAN: 4021179097130
MPN:
IF5653
Unit Price (€ / pc.)
98.1750 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
98.18 € *
Price list
Quantity
Price per unit*
1 pcs.
98.1750 €
3 pcs.
95.4618 €
5 pcs.
92.8914 €
*incl. VAT plus shipping costs
Subject to prior sale
Inductive sensor, IF5653, IFM electronic
Features
- Robust metal housing for use in harsh industrial environments
- Complementary output function NO/NC
- Clearly visible indication of the switching status
- Very high switching frequency
- Wide operating temperature range
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | antivalent | |
| Detecting distance | 2 mm | |
| Degree of protection (IP) | IP65 | |
| Version | PNP | |
| Connection | M12-connector | |
| Assembly | flush mounting M12, flush | |
| switching current | 250 mA | |
| Switching Voltage (DC) | 36 V | |
| Length | 70 mm | |
| Product type | inductive sensor |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365019 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
