IF508A | IFM electronic

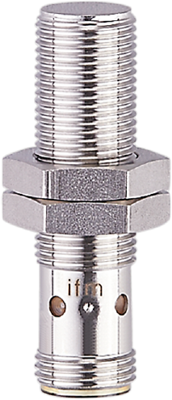

Inductive sensor, PNP, flush mounting M12, flush, 1 Form A (N/O), 30 V (DC), 100 mA, IF508A
Order No.: 82P5253
EAN: 4021179324380
MPN:
IF508A
Unit Price (€ / pc.)
89.5237 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
89.52 € *
Price list
Quantity
Price per unit*
1 pcs.
89.5237 €
3 pcs.
85.6562 €
5 pcs.
82.0862 €
*incl. VAT plus shipping costs
Subject to prior sale
Inductive sensor, IF508A, IFM electronic
Features
- For applications in hazardous areas
- Metal sensing face for heavy duty
- Clearly visible indication of the switching status
- High shock and vibration resistance
- Permanently legible laser type label
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | 1 Form A (N/O) | |
| Detecting distance | 4 mm | |
| Degree of protection (IP) | IP65/IP66/IP67/IP68/IP69K | |
| Version | PNP | |
| Connection | M12-connector | |
| Assembly | flush mounting M12, flush | |
| switching current | 100 mA | |
| Switching Voltage (DC) | 30 V | |
| Length | 45 mm | |
| Product type | inductive all metal sensor |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365019 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
