OI5004 | IFM electronic
Diffuse sensor, 3-700 mm, NPN, 10-55 VDC, connection terminal 1.5 mm², IP65, OI5004
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
329.1659 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
329.17 € *
Price list
Quantity
Price per unit*
1 pcs.
329.1659 €
3 pcs.
320.5503 €
*incl. VAT plus shipping costs
Subject to prior sale

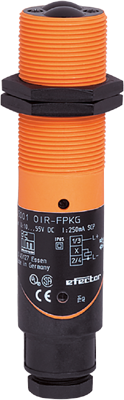

Diffuse reflection sensor, OI5004, IFM electronic
Features
- Very long range
- With terminal chamber that can be rotated by 90°
- Programmable light-on/dark-on mode
- Large operating voltage range
- Optional connection possibility for fibre optics
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | diffuse sensor | |
| Detecting distance | 3-700 mm | |
| Output | NPN | |
| Connection | connection terminal 1.5 mm² | |
| Voltage | 10-55 VDC | |
| Power supply | 30 mA | |
| Switching logic | light ON/dark ON (programmable) | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85365019 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
