21160312/6 | HStronic

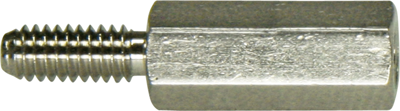

Hexagon spacer bolt, external/internal thread, M3/M3, 16 mm, brass, 21160312/6
Order No.: 18H2031
EAN: 4099889491302
MPN:
21160312/6
This item is no longer available.
As an alternative, we recommend the following item:
Hexagon spacer bolt, external/internal thread, M3/M3, brass, 21160312/6-BF
Order No.: 18H2033
Manufacturer: HStronic
per pc. 0.4641 € *
Hexagonal spacer bolts, nickel-plated brass, type 5.
With inner and outer thread
Hexagonal spacer bolts, thread M3 (width across flats 5.5 mm), type 5.13.

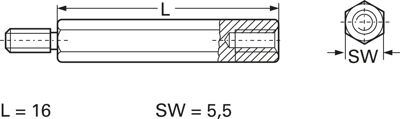

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | spacer bolt | |
| Version | external/internal thread | |
| Thread size | M3/M3 | |
| Bolt length | 16 mm | |
| Length | 22 mm | |
| Design | hexagon | |
| spanner size | 5.5 mm | |
| External thread length | 6 mm | |
| Internal thread length | 6 mm | |
| Inner diameter | 3 mm | |
| Material | brass | |
| Colour | silver |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 74153900 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
