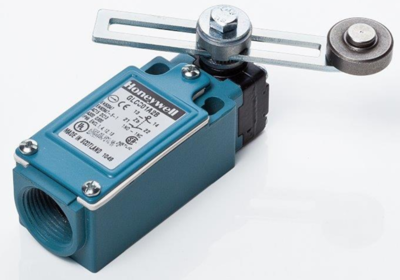

GLCC01A2B | Honeywell
Switch, On-On, roller lever, screw connection, IP66, GLCC01A2B
Limit switch, GLCC01A2B, Honeywell
Limit switches are durable and reliable limit switches sealed to IP and NEMA standards. The compact housings are often ideal for equipment where space is limited. The extensive product range is available in three different enclosure types; metal enclosure, plastic enclosure or a metal enclosure with three wires, which are mounting compatible to EN50047. A wide range of actuators, contact blocks and channel/connection options extend the product range. In today's demanding age of logic level controls, electromechanical switches are often used to interface with PLC and other logic level devices. GLS limit switches offer a gold plated contact option for the standard switch. This option promotes switch reliability for logic level applications.
Features
- Designed to IEC standard for worldwide applications
- International Conductor sizes
- Compatible with direct PLC interface (two circuits)
Connection | screw connection | |
Actuator | roller lever | |
Latching switching function | On-On | |
Degree of protection (IP) | IP66 |
Country of origin | GB |
Customs tariff number | 85365080 |
RoHS conform | Yes |
Date of RoHS guidelines | 6/8/11 |
SVHC free | Yes |
