C1812X474K101T | HolyStone
Ceramic capacitor, 470 nF, 100 V (DC), ±10 %, SMD 1812, X7R, C1812X474K101T
Unit Price (€ / pc.)
0.5236 € *
Available: 990 pcs.
Leadtime: 14 Weeks **
Total Price:
0.52 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5236 €
10 pcs.
0.3570 €
100 pcs.
0.2428 €
500 pcs.
0.1785 €
1000 pcs.
0.1630 €
*incl. VAT plus shipping costs
**Subject to prior sale

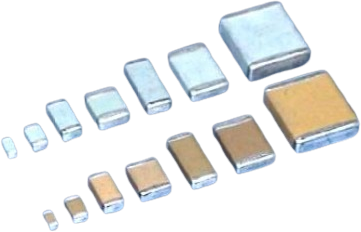

Multilayer ceramic chip capacitor, C1812X474K101T, HolyStone
The C1812X474K101T multilayer ceramic chip capacitor is well suited for commercial and industrial applications. The special internal electrode design offers the highest voltage rating.
Features
- Surface mount suitable for wave and reflow soldering
- High reliability
- RoHS compliant
Applications
- LAN/WLAN interface, Back-Lighting Inverter, DC-DC Converters, Ballast, Modems and Power Supplies
Technical specifications
| Design | SMD 1812 | |
| Dielectric material | X7R | |
| Capacity | 470 nF | |
| Length | 4.6 mm | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -55 °C | |
| Rated voltage (DC) | 100 V | |
| Tolerance | ±10 % |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85322400 |
| Original Packaging | Reel with 1,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
