C1812X105K251T | HolyStone
Ceramic capacitor, 1 µF, 250 V (DC), ±10 %, SMD 1812 (4532), X7R, C1812X105K251T
Unit Price (€ / pc.)
0.7140 € *
Standard delivery time from the manufacturer is: 15 Weeks
Total Price:
0.71 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7140 €
10 pcs.
0.4760 €
100 pcs.
0.3332 €
500 pcs.
0.2451 €
1000 pcs.
0.2225 €
*incl. VAT plus shipping costs
Subject to prior sale

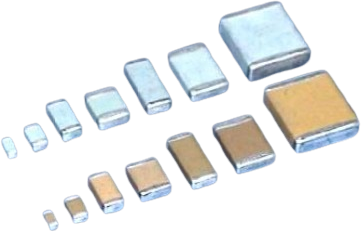

Multilayer ceramic chip capacitor, C1812X105K251T, HolyStone
The C1812X105K251T multilayer ceramic chip capacitor is well suited for commercial and industrial applications. The special internal electrode design offers the highest voltage rating.
Features
- Surface mount suitable for wave and reflow soldering
- High reliability
- RoHS compliant
Applications
- LAN/WLAN interface, Back-Lighting Inverter, DC-DC Converters, Ballast, Modems and Power Supplies
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Capacity | 1 µF | |
| Tolerance | ±10 % | |
| Design | SMD 1812 (4532) | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -55 °C | |
| Rated voltage (DC) | 250 V | |
| Length | 4.6 mm | |
| Dielectric material | X7R |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322400 |
| Country of origin | TW |
| Original Packaging | Reel with 700 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
