MLS WG 100/2,5 SW | Hirschmann Test & Measurement

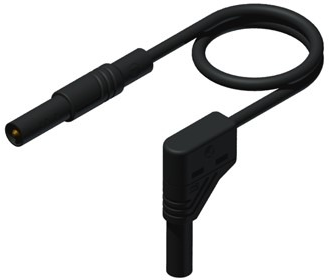

Measuring line with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, angled), 1 m, black, PVC, 2.5 mm², CAT III

Hirschmann Test & Measurement
default L
front L
default S
front S
Images may differ
Order No.:  86F3724
Manufacturer:  Hirschmann Test & Measurement
Manufacturer SKU:
MLS WG 100/2,5 SW
934 083-100
934083100
Manufacturer series:  MLS WG
EAN: 4099891070786
about the green icons
Total price
( 8.6870 € * / pcs.)
8.69 €
Available: 50 pcs.
Leadtime
Quantity
Price per unit*
1 pcs.
8.6870 €
10 pcs.
7.6398 €
50 pcs.
7.1281 €
150 pcs.
6.8068 €
500 pcs.
6.4617 €
*incl. VAT plus shipping costs
Show 11 variants
Description
Technical specifications
Logistics
Compliance
Download
Variations
Description

Measuring lead, MLS WG 100/2,5 SW, Hirschmann Test & Measurement

Touch-proof test lead according to IEC 61010, both ends safety plug with 4mm diameter and straight/right-angled outlet. outlet. Contact spring copper beryllium nickel-plated. Highly flexible, double insulated stranded cable, grip sleeve and cable tread-proof. Incorporated color indicator to detect damage to insulation.
Technical specifications
Connection (1) 4 mm plug, spring-loaded, straight
Connection (2) 4 mm plug, spring-loaded, angled
Rated Voltage 1000 V
Rated current 32 A
Touch safe Yes
Colour black
Cable length 1 m
contact surface nickel-plated
Cable cross-section 2.5 mm²
Material PVC
Rated category CAT III
Stackable No
Show similar products (0)
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
Cable cross-section
Rated current
Unit
Cable length
Unit
Colour
Material
contact surface
Rated Voltage
Rated category
Connection (2)
Connection (1)
Search results: 1 item in 11 variations
*incl. VAT plus shipping costs
Item description
Total
Price list
Availability
Cable cross-section
Rated current
Cable length
Colour
Material
contact surface
Rated Voltage
Rated category
Connection (2)
Connection (1)
Measuring line with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, angled), 1 m, black, PVC, 2.5 mm², CAT III
Measuring line with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, angled), 1 m, black, PVC, 2.5 mm², CAT III
Order No.:
 86F3724
Manufacturer:
 Hirschmann Test & Measurement
Manufacturer SKU:
 MLS WG 100/2,5 SW
8.69 € *
1 pcs.
8.6870 €
10 pcs.
7.6398 €
50 pcs.
7.1281 €
150 pcs.
6.8068 €
500 pcs.
6.4617 €
Available: 50 pcs.
Leadtime
2.5 mm²
32 A
1 m
black
PVC
nickel-plated
1000 V
CAT III
4 mm plug, spring-loaded, angled
4 mm plug, spring-loaded, straight
Measuring line with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, angled), 1 m, red, PVC, 2.5 mm², CAT III
Measuring line with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, angled), 1 m, red, PVC, 2.5 mm², CAT III
Order No.:
 86F3732
Manufacturer:
 Hirschmann Test & Measurement
Manufacturer SKU:
 MLS WG 100/2,5 RT
8.69 € *
1 pcs.
8.6870 €
10 pcs.
7.6398 €
50 pcs.
7.1281 €
150 pcs.
6.8068 €
500 pcs.
6.4617 €
Available: 8 pcs.
Leadtime
2.5 mm²
32 A
1 m
red
PVC
nickel-plated
1000 V
CAT III
4 mm plug, spring-loaded, angled
4 mm plug, spring-loaded, straight
Measuring line with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, angled), 1 m, red, PVC, 1.0 mm², CAT III
Measuring line with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, angled), 1 m, red, PVC, 1.0 mm², CAT III
Order No.:
 86F3692
Manufacturer:
 Hirschmann Test & Measurement
Manufacturer SKU:
 MLS WG 100/1 RT
7.38 € *
1 pcs.
7.3780 €
10 pcs.
6.4974 €
50 pcs.
6.0452 €
150 pcs.
5.7834 €
500 pcs.
5.4859 €
Available: 24 pcs.
Leadtime
1.0 mm²
16 A
1 m
red
PVC
nickel-plated
1000 V
CAT III
4 mm plug, spring-loaded, angled
4 mm plug, spring-loaded, straight
Measuring line with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, angled), 2 m, black, PVC, 2.5 mm², CAT III
Measuring line with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, angled), 2 m, black, PVC, 2.5 mm², CAT III
Order No.:
 86F3726
Manufacturer:
 Hirschmann Test & Measurement
Manufacturer SKU:
 MLS WG 200/2,5 SW
9.63 € *
1 pcs.
9.6271 €
10 pcs.
8.4728 €
50 pcs.
7.8897 €
150 pcs.
7.5446 €
500 pcs.
7.1638 €
Available: 1 pcs.
Leadtime
2.5 mm²
32 A
2 m
black
PVC
nickel-plated
1000 V
CAT III
4 mm plug, spring-loaded, angled
4 mm plug, spring-loaded, straight
Measuring line with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, angled), 1 m, black, PVC, 1.0 mm², CAT III
Measuring line with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, angled), 1 m, black, PVC, 1.0 mm², CAT III
Order No.:
 86F3684
Manufacturer:
 Hirschmann Test & Measurement
Manufacturer SKU:
 MLS WG 100/1 SW
7.38 € *
1 pcs.
7.3780 €
10 pcs.
6.4974 €
50 pcs.
6.0452 €
150 pcs.
5.7834 €
500 pcs.
5.4859 €
Available: 24 pcs.
Leadtime
1.0 mm²
16 A
1 m
black
PVC
nickel-plated
1000 V
CAT III
4 mm plug, spring-loaded, angled
4 mm plug, spring-loaded, straight
Measuring line with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, angled), 2 m, red, PVC, 2.5 mm², CAT III
Measuring line with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, angled), 2 m, red, PVC, 2.5 mm², CAT III
Order No.:
 86F3734
Manufacturer:
 Hirschmann Test & Measurement
Manufacturer SKU:
 MLS WG 200/2,5 RT
9.63 € *
1 pcs.
9.6271 €
10 pcs.
8.4728 €
50 pcs.
7.8897 €
150 pcs.
7.5446 €
500 pcs.
7.1638 €
Available: 17 pcs.
Leadtime
2.5 mm²
32 A
2 m
red
PVC
nickel-plated
1000 V
CAT III
4 mm plug, spring-loaded, angled
4 mm plug, spring-loaded, straight
Measuring line with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, angled), 2 m, blue, PVC, 1.0 mm², CAT III
Measuring line with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, angled), 2 m, blue, PVC, 1.0 mm², CAT III
Order No.:
 86F3702
Manufacturer:
 Hirschmann Test & Measurement
Manufacturer SKU:
 MLS WG 200/1 BL
7.26 € *
25 pcs.
7.2590 €
50 pcs.
6.8187 €
100 pcs.
6.4141 €
Available: 0 pcs.
Leadtime
1.0 mm²
16 A
2 m
blue
PVC
nickel-plated
1000 V
CAT III
4 mm plug, spring-loaded, angled
4 mm plug, spring-loaded, straight
Measuring line with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, angled), 250 mm, red, PVC, 1.0 mm², CAT III
Measuring line with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, angled), 250 mm, red, PVC, 1.0 mm², CAT III
Order No.:
 86F3706
Manufacturer:
 Hirschmann Test & Measurement
Manufacturer SKU:
 MLS WG 25/1 RT
5.56 € *
25 pcs.
5.5573 €
50 pcs.
5.2360 €
100 pcs.
4.9147 €
Available: 0 pcs.
Leadtime
1.0 mm²
16 A
250 mm
red
PVC
nickel-plated
1000 V
CAT III
4 mm plug, spring-loaded, angled
4 mm plug, spring-loaded, straight
Measuring line with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, angled), 2 m, black, PVC, 1.0 mm², CAT III
Measuring line with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, angled), 2 m, black, PVC, 1.0 mm², CAT III
Order No.:
 86F3686
Manufacturer:
 Hirschmann Test & Measurement
Manufacturer SKU:
 MLS WG 200/1 SW
7.26 € *
25 pcs.
7.2590 €
50 pcs.
6.8187 €
100 pcs.
6.4141 €
Available: 0 pcs.
Leadtime
1.0 mm²
16 A
2 m
black
PVC
nickel-plated
1000 V
CAT III
4 mm plug, spring-loaded, angled
4 mm plug, spring-loaded, straight
Measuring line with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, angled), 1 m, blue, PVC, 1.0 mm², CAT III
Measuring line with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, angled), 1 m, blue, PVC, 1.0 mm², CAT III
Order No.:
 86F3700
Manufacturer:
 Hirschmann Test & Measurement
Manufacturer SKU:
 MLS WG 100/1 BL
6.27 € *
25 pcs.
6.2713 €
50 pcs.
5.9143 €
100 pcs.
5.5335 €
Available: 0 pcs.
Leadtime
1.0 mm²
16 A
1 m
blue
PVC
nickel-plated
1000 V
CAT III
4 mm plug, spring-loaded, angled
4 mm plug, spring-loaded, straight
Measuring line with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, angled), 250 mm, black, PVC, 1.0 mm², CAT III
Measuring line with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, angled), 250 mm, black, PVC, 1.0 mm², CAT III
Order No.:
 86F3704
Manufacturer:
 Hirschmann Test & Measurement
Manufacturer SKU:
 MLS WG 25/1 SW
5.56 € *
25 pcs.
5.5573 €
50 pcs.
5.2360 €
100 pcs.
4.9147 €
Available: 0 pcs.
Leadtime
1.0 mm²
16 A
250 mm
black
PVC
nickel-plated
1000 V
CAT III
4 mm plug, spring-loaded, angled
4 mm plug, spring-loaded, straight
