934195101 | Hirschmann Test & Measurement

Measuring lead with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, straight), 1 m, red, silicone, 1.0 mm², CAT II, 934195101

Order No.: 86F501
EAN: 4099891075453
MPN:
934195101
MLS SIL WS 100/1 RT
Series: MLS SIL WS

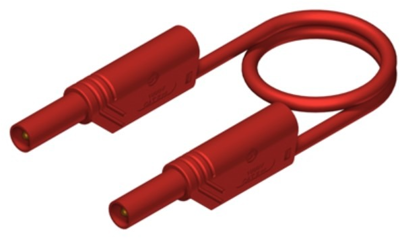

934195101 Hirschmann Test & Measurement Test Leads Image 1

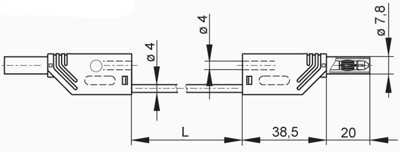

934195101 Hirschmann Test & Measurement Test Leads Image 2
Image may differ
Unit Price (€ / pc.)
8.4728 € *
Available: 3 pcs.
Available in 6 Days: 125 pcs. - if ordered today
Total Price:
8.47 € *
Price list
Quantity
Price per unit*
1 pcs.
8.4728 €
25 pcs.
7.7707 €
50 pcs.
7.2947 €
100 pcs.
6.8306 €
250 pcs.
6.3546 €
*incl. VAT plus shipping costs
Subject to prior sale

Measuring lead, MLS SIL WS 100/1 RT, Hirschmann Test & Measurement

Touch-proof silicone test lead according to IEC 61010, both ends safety plug with 4 mm diameter as well as 4 mm socket for tower plug-in design. Contact spring copper beryllium nickel-plated. Highly flexible, double-insulated stranded cable, soldering iron resistant, grip sleeve and cable tread resistant. Incorporated color indicator for detection of damage to the insulation.

Technical specifications
Filter Property Value
Connection (1) 4 mm plug, spring-loaded, straight
Connection (2) 4 mm plug, spring-loaded, straight
Cable length 1 m
Cable cross-section 1.0 mm²
Colour red
Material silicone
contact surface nickel-plated
Rated category CAT II
Rated Voltage 1000 V
Rated current 16 A
Touch safe Yes
Stackable Yes
Logistics
Property Value
Country of origin DE
Customs tariff number 85444290
Compliance
Property Value
Substance description Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane
SVHC free No
Date of RoHS guidelines 3/31/15
Sustainable Yes
RoHS conform Yes
