934078101 | Hirschmann Test & Measurement

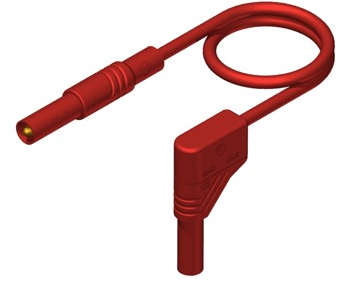

Measuring lead with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, angled), 250 mm, red, PVC, 1.0 mm², CAT III, 934078101

Order No.: 86F3706
EAN: 4099891070779
MPN:
934078101
MLS WG 25/1 RT
Series: MLS WG
934078101 Hirschmann Test & Measurement Test Leads Image 1
934078101 Hirschmann Test & Measurement Test Leads Image 2
Image may differ
Unit Price (€ / pc.)
5.2717 € *
Available in 6 Days: 25 pcs. - if ordered today
Total Price:
5.27 € *
Price list
Quantity
Price per unit*
1 pcs.
5.2717 €
25 pcs.
4.7838 €
50 pcs.
4.6172 €
100 pcs.
4.2840 €
250 pcs.
4.1174 €
*incl. VAT plus shipping costs
Subject to prior sale

Measuring lead, MLS WG 25/1 RT, Hirschmann Test & Measurement

Touch-proof test lead according to IEC 61010, both ends safety plug with 4mm diameter and straight/right-angled outlet. outlet. Contact spring copper beryllium nickel-plated. Highly flexible, double insulated stranded cable, grip sleeve and cable tread-proof. Incorporated color indicator to detect damage to insulation.

Technical specifications
Filter Property Value
Connection (1) 4 mm plug, spring-loaded, straight
Connection (2) 4 mm plug, spring-loaded, angled
Cable length 250 mm
Cable cross-section 1.0 mm²
Colour red
Material PVC
contact surface nickel-plated
Rated category CAT III
Rated Voltage 1000 V
Rated current 16 A
Touch safe Yes
Stackable No
Logistics
Property Value
Customs tariff number 85444290
Country of origin DE
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
Sustainable Yes
SVHC free Yes
