975018701 | Hirschmann Test & Measurement

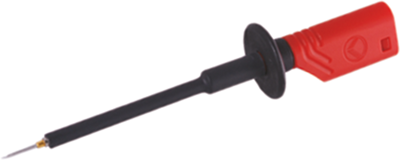

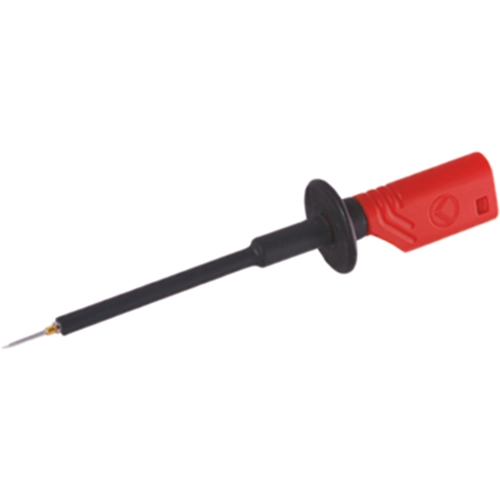

Test probe, socket 2 mm, rigid, 1 kV, red, 975018701
Unit Price (€ / pc.)
6.4379 € *
Available: 11 pcs.
Available in 6 Days: 200 pcs. - if ordered today
Total Price:
6.44 € *
Price list
Quantity
Price per unit*
1 pcs.
6.4379 €
20 pcs.
5.7953 €
60 pcs.
5.4740 €
100 pcs.
5.3312 €
500 pcs.
5.1170 €
*incl. VAT plus shipping costs
Subject to prior sale
Safety test probes, type SKS/Hirschmann T & M PRUEF 1610 FT Au.
Step-on-proof insulating sleeve and slim stainless steel tip (penetrates insulation and oxide layers); Pin diameter: 0.75 mm. Connection: 2.0 mm jack. Rated voltage: 1000 V AC/DC. Rated current: 10 A. Contact resistance: 20 mohm. Measuring category: CAT II. Material housing/tip/jack: PA/stainless steel/brass. Tip/jack finish: rhodium/gold. Operating temperatures: –25 to +70 °C.
Type: PRUEF 1610 FT Au, red
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | test probe | |
| Connection | socket 2 mm, rigid | |
| Rated Voltage | 1000 VAC/VDC | |
| Rated voltage | 1 kV | |
| Rated category | CAT II | |
| Colour | red | |
| Material Insulation | PA | |
| Contact material | brass |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| Sustainable | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
