975018700 | Hirschmann Test & Measurement

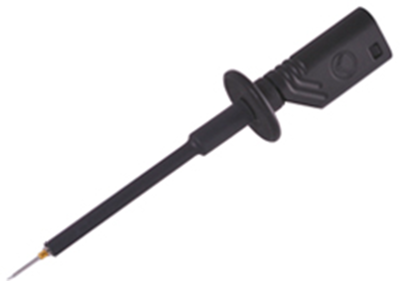

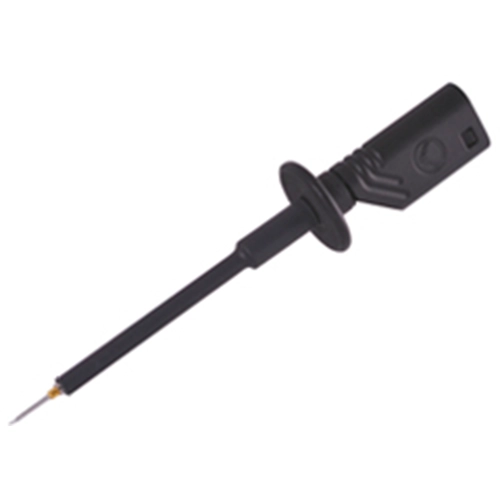

Test probe, socket 2 mm, rigid, 1 kV, black, 975018700
Unit Price (€ / pc.)
8.1039 € *
Available: 37 pcs.
Available in 6 Days: 120 pcs. - if ordered today
Total Price:
8.10 € *
Price list
Quantity
Price per unit*
1 pcs.
8.1039 €
20 pcs.
7.1281 €
100 pcs.
6.6045 €
500 pcs.
6.3546 €
1000 pcs.
6.0333 €
*incl. VAT plus shipping costs
Subject to prior sale
Safety test probes, type SKS/Hirschmann T & M PRUEF 1610 FT Au.

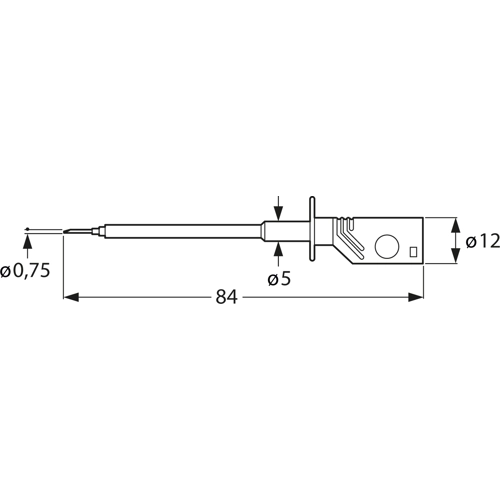

Step-on-proof insulating sleeve and slim stainless steel tip (penetrates insulation and oxide layers); Pin diameter: 0.75 mm. Connection: 2.0 mm jack. Rated voltage: 1000 V AC/DC. Rated current: 10 A. Contact resistance: 20 mohm. Measuring category: CAT II. Material housing/tip/jack: PA/stainless steel/brass. Tip/jack finish: rhodium/gold. Operating temperatures: –25 to +70 °C.
Type: PRUEF 1610 FT Au, black
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | test probe | |
| Connection | socket 2 mm, rigid | |
| Rated voltage | 1 kV | |
| Colour | black | |
| Material Insulation | PA | |
| Contact material | brass |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Sustainable | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
