973601101 | Hirschmann Test & Measurement
Test probe, socket 4 mm, rigid, 30 VAC/60 VDC, CAT O, red, 973601101
Unit Price (€ / pc.)
5.9262 € *
Available: 22 pcs.
Available in 6 Days: 160 pcs. - if ordered today
Total Price:
5.93 € *
Price list
Quantity
Price per unit*
1 pcs.
5.9262 €
20 pcs.
5.3312 €
60 pcs.
5.0337 €
100 pcs.
4.7362 €
500 pcs.
4.4506 €
*incl. VAT plus shipping costs
Subject to prior sale

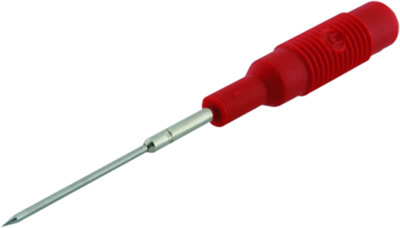

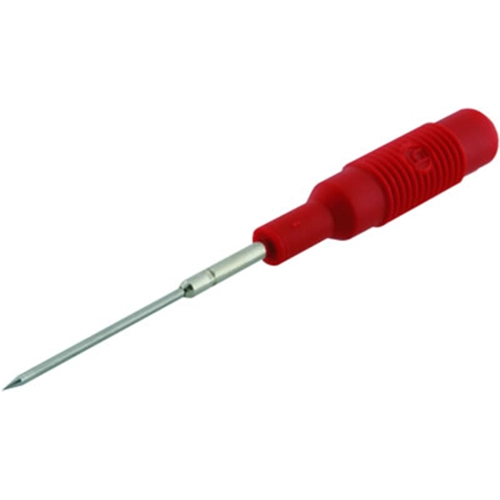

Test probe, 973 601-101, Hirschmann T&M
Needle-shaped, long stainless steel test probe with step-resistant insulating sheath and unsprung 4mm connection socket. With the test probe it is possible to measure from the back of the closed connector while the test lead is plugged in or in operation.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | test probe | |
| Connection | socket 4 mm, rigid | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated category | CAT O | |
| Colour | red | |
| Material Insulation | PP | |
| Contact material | brass, nickel-plated |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Carton with 20 pieces |
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
