975459701 | Hirschmann Test & Measurement
2 mm socket, solder connection, mounting Ø 8 mm, CAT III, red, 975459701
Order No.: 25F3941
EAN: 4099889673128
MPN:
975459701
MSEB 2630 S 1,9 AU RT
Series: MSEB 2630 S 1,9 Au
Unit Price (€ / pc.)
1.9516 € *
Available: 24 pcs.
Available in 6 Days: 400 pcs. - if ordered today
Total Price:
1.95 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9516 €
10 pcs.
1.7731 €
50 pcs.
1.6303 €
100 pcs.
1.4756 €
500 pcs.
1.3923 €
*incl. VAT plus shipping costs
Subject to prior sale
Laboratory connector, MSEB 2630 S 1,9 AU RT, HIRSCHMANN

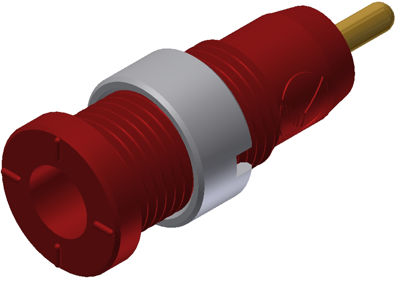

The MSEB 2630 S 1,9 AU RT is a miniature - safety built-in socket with 2 mm diameter. It has touch protection and a 1.9 mm soldering spike connection. Is used for installation into switch- panels and equipment chassis with a wall thickness up to 8mm and the installation hole is 8 mm in diameter.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket | |
| contact surface | gold-plated | |
| Rated Voltage | 1000 V | |
| Rated current | 10 A | |
| Touch safe | Yes | |
| diameter | 2 mm | |
| Rated category | CAT III | |
| Installation diameter | 8 mm | |
| Length | 28 mm | |
| Connection | solder connection | |
| Colour | red |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Carton with 50 pieces |
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
