975455702 | Hirschmann Test & Measurement

2 mm socket, flat plug connection, mounting Ø 8 mm, CAT III, blue, 975455702

Order No.: 25F3924
EAN: 4099889673043
MPN:
975455702
MSEB 2610 F 2,8 AU BL
975455702 Hirschmann Test & Measurement Laboratory Connectors Image 1
975455702 Hirschmann Test & Measurement Laboratory Connectors Image 2
Image may differ
Unit Price (€ / pc.)
2.4752 € *
Available: 10 pcs.
Available in 6 Days: 200 pcs. - if ordered today
Total Price:
2.48 € *
Price list
Quantity
Price per unit*
1 pcs.
2.4752 €
10 pcs.
2.2372 €
50 pcs.
2.0706 €
100 pcs.
1.8802 €
500 pcs.
1.7731 €
*incl. VAT plus shipping costs
Subject to prior sale

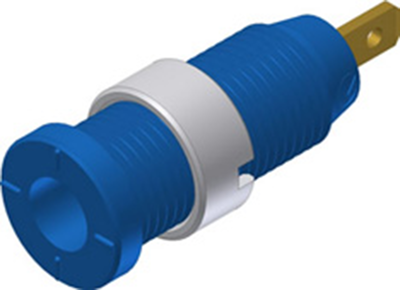

Miniature panel jacks, 2.0 mm, type Hirschmann T & M MSEB 2610 F 2,8 Au.

To IEC 61010, for 2.0 mm safety laboratory plugs. With 2.8 x 0.8 mm tab terminals. For installation in switchboards and equipment chassis with panel thickness up to 8.0 mm; Contact type: female, not spring-loaded. Contact material: gold-plated brass. Rated voltage: 1000 VUC, CAT III. Rated current: 10 A. Contact resistance: 2.0 mohm. Operating temperatures: –25 to +70 °C.

Type: MSEB 2610 F 2,8 Au, blue

Technical specifications
Filter Property Value
Installation diameter 8 mm
Rated Voltage 1000 V
Connection flat plug connection
Version socket
contact surface gold-plated
Rated category CAT III
diameter 2 mm
Touch safe Yes
Colour blue
Rated current 10 A
Length 28 mm
Logistics
Property Value
Country of origin DE
Original Packaging Carton with 50 pieces
Customs tariff number 85366990
Compliance
Property Value
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
Sustainable Yes
RoHS conform Yes
