975454700 | Hirschmann Test & Measurement

2 mm socket, screw connection, mounting Ø 8 mm, CAT III, black, 975454700

Order No.: 25F3900
EAN: 4099889672930
MPN:
975454700
MSEB 2600 G M3 AU SW

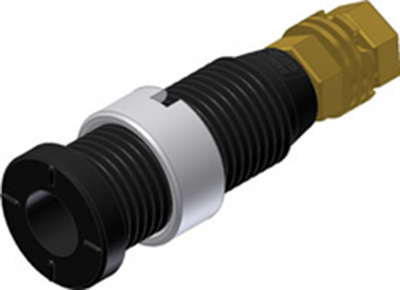

975454700 Hirschmann Test & Measurement Laboratory Connectors Image 1

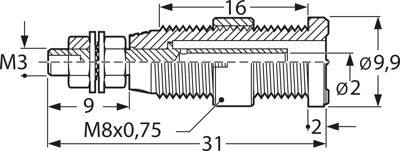

975454700 Hirschmann Test & Measurement Laboratory Connectors Image 2
Image may differ
Unit Price (€ / pc.)
2.5228 € *
Available: 100 pcs.
Available in 6 Days: 100 pcs. - if ordered today
Total Price:
2.52 € *
Price list
Quantity
Price per unit*
1 pcs.
2.5228 €
10 pcs.
2.3800 €
50 pcs.
2.2253 €
100 pcs.
2.0825 €
500 pcs.
1.9278 €
*incl. VAT plus shipping costs
Subject to prior sale

Miniature panel jacks, 2.0 mm, type Hirschmann T & M MSEB 2600 G M3 Au.

To IEC 61010, for 2.0 mm safety laboratory plugs. With M3 screw/solder terminals. For installation in switchboards and equipment chassis with panel thickness up to 8.0 mm; Contact type: female, not spring-loaded. Contact material: gold-plated brass. Rated voltage: 1000 VUC, CAT III. Rated current: 10 A. Contact resistance: 2.0 mohm. Operating temperatures: –25 to +70 °C.

Type: MSEB 2600 G M3 Au, black

Technical specifications
Filter Property Value
Installation diameter 8 mm
Rated Voltage 1000 V
Connection screw connection
Version socket
contact surface gold-plated
Rated category CAT III
diameter 2 mm
Touch safe Yes
Colour black
Rated current 10 A
Length 31 mm
Logistics
Property Value
Country of origin DE
Original Packaging Carton with 50 pieces
Customs tariff number 85366990
Compliance
Property Value
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
Sustainable Yes
RoHS conform Yes
