972358700 | Hirschmann Test & Measurement

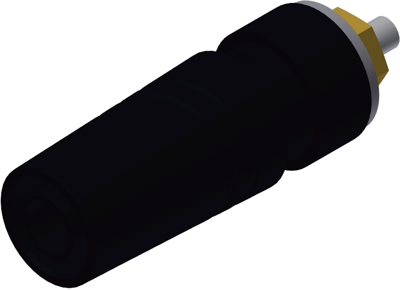

4 mm socket, solder connection, mounting Ø 11 mm, CAT II, black, 972358700
Unit Price (€ / pc.)
3.8437 € *
Available: 133 pcs.
Available in 6 Days: 200 pcs. - if ordered today
Total Price:
3.84 € *
Price list
Quantity
Price per unit*
1 pcs.
3.8437 €
10 pcs.
3.3915 €
50 pcs.
3.2130 €
100 pcs.
3.0345 €
500 pcs.
2.8560 €
*incl. VAT plus shipping costs
Subject to prior sale
Laboratory connector, SAB 2640 LK AU SW, HIRSCHMANN
The SAB 2640 LK AU SW is a safety surface-mounted socket with 4 mm diameter and has protected contacts. It is used for installation into switch-panels and equipment-chassis of 1-4 mm thickness.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket | |
| contact surface | gold-plated | |
| Rated Voltage | 1000 V | |
| Rated current | 32 A | |
| Touch safe | Yes | |
| diameter | 4 mm | |
| Rated category | CAT II | |
| Installation diameter | 11 mm | |
| Length | 40 mm | |
| Connection | solder connection | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
