972355109 | Hirschmann Test & Measurement
4 mm socket, flat plug connection, mounting Ø 12.2 mm, CAT III, purple, 972355109
Unit Price (€ / pc.)
1.9159 € *
Available: 40 pcs.
Available in 6 Days: 400 pcs. - if ordered today
Total Price:
1.92 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9159 €
50 pcs.
1.7612 €
100 pcs.
1.6660 €
500 pcs.
1.5589 €
1000 pcs.
1.4518 €
*incl. VAT plus shipping costs
Subject to prior sale

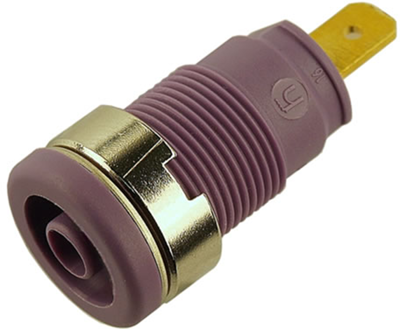

Laboratory connector, SEB 2610 F4,8 VI, HIRSCHMANN
The SEB 2610 F4,8 VI is a safety built-in socket with 4 mm diameter and has protected contacts, with 4.8 x 0.8 tab connector. It is used for installation into switchpanels and equipment chassis with wall thicknesses up to 6 mm. The installation hole is 12.2 mm in diameter and the tightening torque is 50 Ncm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Installation diameter | 12.2 mm | |
| Rated Voltage | 1000 V | |
| Connection | flat plug connection | |
| Version | socket | |
| contact surface | gold-plated | |
| Rated category | CAT III | |
| diameter | 4 mm | |
| Touch safe | Yes | |
| Colour | purple | |
| Rated current | 25 A | |
| Length | 32 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Original Packaging | Carton with 50 pieces |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
| RoHS conform | Yes |
