972355106 | Hirschmann Test & Measurement

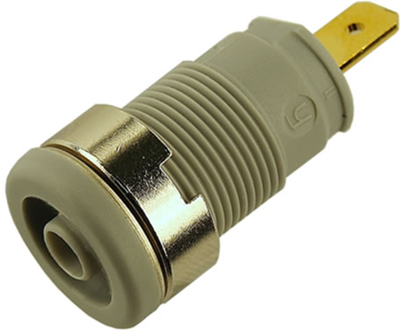

4 mm socket, flat plug connection, mounting Ø 12.2 mm, CAT III, gray, 972355106

Order No.: 25F2055
EAN: 4099889671780
MPN:
972355106
SEB 2610 F4,8 GR
Series: SEB 2610 F4,8
972355106 Hirschmann Test & Measurement Laboratory Connectors
Image may differ
Unit Price (€ / pc.)
1.9159 € *
Available: 83 pcs.
Available in 6 Days: 500 pcs. - if ordered today
Total Price:
1.92 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9159 €
50 pcs.
1.7612 €
100 pcs.
1.6660 €
500 pcs.
1.5589 €
1000 pcs.
1.4518 €
*incl. VAT plus shipping costs
Subject to prior sale

Laboratory connector, SEB 2610 F4,8 GR, HIRSCHMANN

The SEB 2610 F4,8 GR is a safety built-in socket with 4 mm diameter and has protected contacts, with 4.8 x 0.8 tab connector. It is used for installation into switchpanels and equipment chassis with wall thicknesses up to 6 mm. The installation hole is 12.2 mm in diameter and the tightening torque is 50 Ncm.

<
Technical specifications
Filter Property Value
Rated Voltage 1000 V
Length 32 mm
Colour gray
Installation diameter 12.2 mm
diameter 4 mm
Connection flat plug connection
contact surface gold-plated
Touch safe Yes
Version socket
Rated current 25 A
Rated category CAT III
Logistics
Property Value
Original Packaging Carton with 50 pieces
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
Sustainable Yes
SVHC free Yes
