930058107 | Hirschmann Test & Measurement
4 mm plug, screw connection, 1.5 mm², CAT O, white, 930058107
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.9758 € *
Available: 25 pcs.
Total Price:
0.98 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9758 €
50 pcs.
0.8806 €
100 pcs.
0.8330 €
500 pcs.
0.7378 €
1000 pcs.
0.6783 €
*incl. VAT plus shipping costs
Subject to prior sale

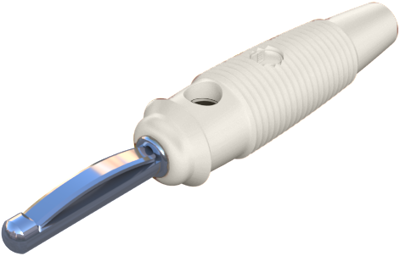

Laboratory connector, VQ 20 WS, HIRSCHMANN
The VQ 20 WS is a fully mating connector that is shatter-proof and has a flexible insulated sleeve with transverse hole. The tapering sleeve end also serves as kinking protection for the lead.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | plug | |
| diameter | 4 mm | |
| Colour | white | |
| Connection | screw connection | |
| contact surface | nickel-plated | |
| Cable cross-section | 1.5 mm² | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 16 A | |
| Rated category | CAT O | |
| Touch safe | No | |
| Length | 61 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Carton with 50 pieces |
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Electrical equipment take-back |  |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
