PKN 10 B SW | Hirschmann Test & Measurement

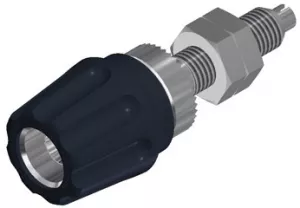

Pole terminal, 4 mm, black, 30 VAC/60 VDC, 63 A, solder connection, nickel-plated, PKN 10 B SW
Pole terminal, PKN 10 B SW, Hirschmann Test & Measurement
Pole terminal with claw edge and captive insulating head - diameter 4 mm. Threaded bolt with 6 mm diameter made of nickel-plated brass with 2.6 mm cross hole. For twist-proof installation in equipment chassis and control panels.
Connection | solder connection | |
Rated Voltage | 30 VAC/60 VDC | |
Rated current | 63 A | |
diameter | 4 mm | |
Installation diameter | 7.5 mm | |
Colour | black | |
contact surface | nickel-plated | |
Length | 52 mm |
Country of origin | DE |
Customs tariff number | 85366990 |
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | No |
Substance description | Lead |
