MA 2 VA GN | Hirschmann Test & Measurement

Alligator clip, green, max. 4 mm, L 41.5 mm, CAT O, socket 2 mm, MA 2 VA GN

Order No.: 30F367
EAN: 4099889682748
MPN:
MA 2 VA GN
930 319-104
Series: MA 2 VA
Hirschmann Test & Measurement
default L
front L
Image may differ
Unit Price (€ / pc.)
1.7612 € *
Available: 32 pcs.
Leadtime: 2 Weeks **
Total Price:
1.76 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7612 €
50 pcs.
1.4994 €
100 pcs.
1.4399 €
500 pcs.
1.3923 €
1000 pcs.
1.2495 €
*incl. VAT plus shipping costs
**Subject to prior sale

Aligator clip, MA 2 VA GN, Hirschmann Test & Measurement

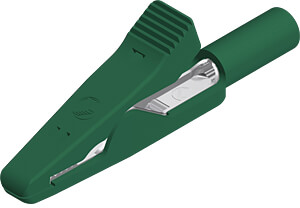

The MA 2 VA GN is a miniature alligator clip with high strength insulation and 2 mm socket connection. Jaws and spring in stainless steel. The flat part of the jaws (fine wire section) allows a secure contact to be made when clamping even the thinnest wires. This product is capable of clamping flat components (soldering eyes) and wires up to a maximum diameter of 4 mm.

Technical specifications
Connection socket 2 mm
Rated Voltage 30 VAC/60 VDC
Rated current 6 A
Colour green
clamping force range max. 4 mm
Contact material stainless steel

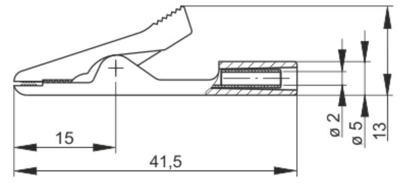

Length 41.5 mm
Rated category CAT O
Logistics
Country of origin DE
Customs tariff number 85366990
Original Packaging Carton with 50 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
