934888061 | Hirschmann Automation and Control

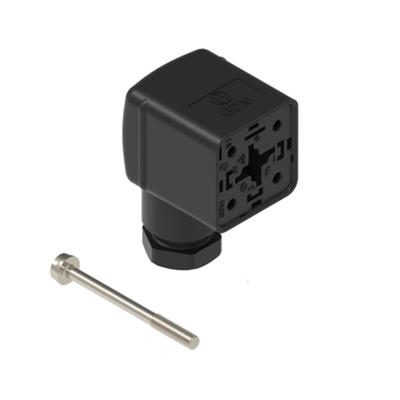

Valve connector, DIN shape A, 2 pole + PE, 24 V, 0.25-1.5 mm², 934888061
Unit Price (€ / pc.)
10.8171 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
10.82 € *
Price list
Quantity
Price per unit*
1 pcs.
10.8171 €
10 pcs.
10.0793 €
50 pcs.
9.4486 €
100 pcs.
8.8774 €
*incl. VAT plus shipping costs
Subject to prior sale
Valve Connector, 934888061, Hirschmann Automation and Control
GDM Standard DIN Standard Field Attachable Connector, Form A, 3-pin (2+1PE, PE across cable outlet), black housing, screw type, M20, with supressor diode, 24 V AC/DC, 10 A.
Technical specifications
| Version | DIN shape A | |
| Cable cross-section | 0.25-1.5 mm² | |
| Pin number | 2 pole + PE | |
| Rated voltage | 24 V | |
| Degree of protection (IP) | IP65 | |
| Wiring | suppressordiode | |
| LED display | No | |
| Type of locking | central screw |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85366990 |
Compliance
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
