933929100 | Hirschmann Automation and Control

Valve connector, DIN shape B, 2 pole + PE, 24 V, 0.25-1.5 mm², 933929100

Order No.: 51F5670
EAN: 4099889745146
MPN:
933929100
GML 209 NJ LED 24 VR YE SW
Series: GML
933929100 Hirschmann Automation and Control DIN Valve Connectors

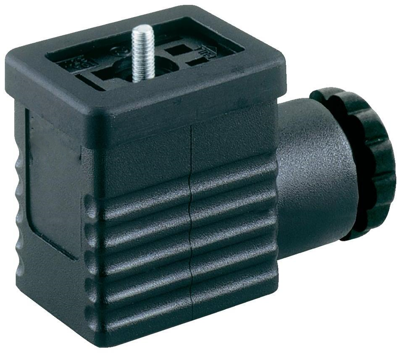

Image may differ
Unit Price (€ / pc.)
10.2935 € *
Available: 37 pcs.
Total Price:
10.29 € *
Price list
Quantity
Price per unit*
1 pcs.
10.2935 €
10 pcs.
9.0559 €
50 pcs.
8.4371 €
150 pcs.
8.0801 €
500 pcs.
7.6517 €
*incl. VAT plus shipping costs
Subject to prior sale

Valve connector, GML 209 NJ LED 24 VR YE SW,Hirschmann Automation and Control

Contact arrangement to DIN EN 175 301-803-B or industrial standard (11 mm); Operating voltage: 250 V AC/DC. Operating current: 16 A. Contacts: 6.3 x 0.8 mm, CuZn. Cable gland: Pg 9 for cable diameters from 4.5 mm to 7.0 mm. Degree of soiling: 3. Vibration-proof interlock with M 3 x 35 center screw (also available as knurled screw). Wiring: screws, cable lug or ring solder lug. Degree of protection (in inserted and secured state): IP 65 to DIN 40050. Housing and contact block material: PA, black. Combustibility: UL 94 V-1(contact block UL 94 HB). Operating temperatures: -40 °C to +125 °C.

With free-wheeling diode, type GML 209 NJ LED 24 VR YE.

With protection circuit (varistor) and function display with yellow LED; Housing: transparent. Operating current: 8.0 A.

Technical specifications
Version DIN shape B
Cable cross-section 0.25-1.5 mm²
Pin number 2 pole + PE
Rated voltage 24 V
Degree of protection (IP) IP65
Wiring varistor
LED display Yes
Type of locking central screw
Logistics
Country of origin HU
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
