933571100 | Hirschmann Automation and Control

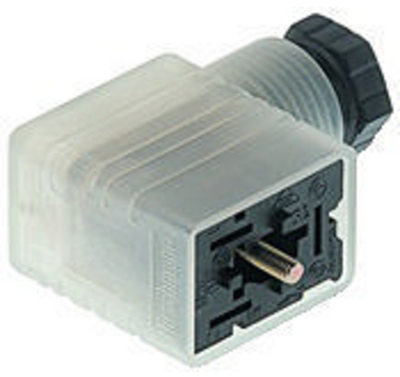

Valve connector, DIN shape B, 2 pole + PE, 30 V, 0.25-1.5 mm², 933571100
Unit Price (€ / pc.)
5.9381 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Valve Connector Type B, GML 209 NJ LED 24 YE schwarz, Hirschmann
Dependable Technology, Perfect Connection
Intuitive handling combined with a particularly durable design makes the proven type B valve connectors the ideal choice for challenging industrial automation surroundings.
FEATURES
- Easy to connect – with plug-andplay, prewired cordsets or flexible field attachables, user-friendly
- Easy to maintain – protective circuitries combined with all-around clearly visible LED function displays facilitate quick optical controls and ease of maintenance
- Easy to rely on – ideal for harsh applications due to an extended temperature range, high imperme- ability and a vibration-proof design
Technical Data
- Version: DIN FORM B
- Pin number: 2 + PE
- Wiring: Without Circuit
- Cable cross-section: 0.25-1.5 mm²
Technical specifications
| Version | DIN shape B | |
| Wiring | without circuit | |
| LED display | Yes | |
| Cable cross-section | 0.25-1.5 mm² | |
| Rated voltage | 30 V | |
| Pin number | 2 pole + PE | |
| Degree of protection (IP) | IP65 | |
| Type of locking | central screw |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
