933113100 | Hirschmann Automation and Control

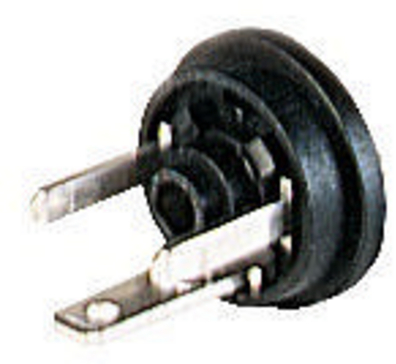

Valve panel plug, DIN shape C, 2 pole + PE, 250 V, 0.08-0.75 mm², 933113100
Unit Price (€ / pc.)
1.1186 € *
Available: 0 pcs.
Leadtime: 30 Weeks **
Valve Connector Type C, GSSNR 200, Hirschmann
These highly versatile rectangular connectors fit almost anywhere with their space-saving design and are engineered for applications where reliability and precision are imperative.
FEATURES
- Small size – due to its compact housing design, type C valve connectors are ideally suited for use in confined spaces
- Strong impact – integrated circuitries protect from inductive voltage and thus provide for a secure and reliable connection
- Proven technology – valued worldwide and approved by various institutions such as UL, VDE or CSA
Technical Data
- Version: DIN FORM C
- Pin number: 2 + PE
- Type of locking: Central Screw
- Cable cross-section: 0.08-0.75 mm²
Technical specifications
| Version | DIN shape C | |
| Cable cross-section | 0.08-0.75 mm² | |
| Rated voltage | 250 V | |
| Pin number | 2 pole + PE | |
| Degree of protection (IP) | IP65 | |
| Type of locking | central screw |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
