932890100 | Hirschmann Automation and Control

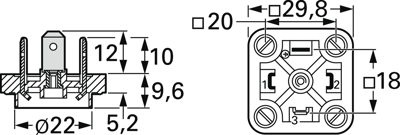

Valve panel plug, DIN shape A, 3 pole + PE, 400 V, 0.08-1.5 mm², 932890100
Panel connectors, type Hirschmann GSE.

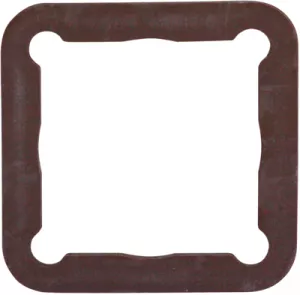

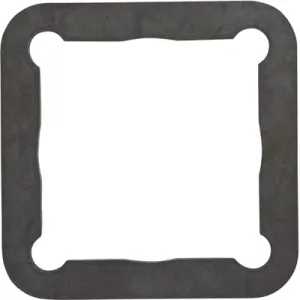

For sheet metal wall mounting (mounting hole diameter 22.5 mm). with solder terminals; Certifications: VDE, SEV. Sealing accessories are described below.
Type: GSE 3000 N4, 3-pole + PE
Version | DIN shape A | |
Cable cross-section | 0.08-1.5 mm² | |
Rated voltage | 400 V | |
Pin number | 3 pole + PE | |
Degree of protection (IP) | IP65 | |
Type of locking | central screw |
Country of origin | HU |
Customs tariff number | 85366990 |
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | No |
Substance description | Lead |
