932890100 | Hirschmann Automation and Control
Valve panel plug, DIN shape A, 3 pole + PE, 400 V, 0.08-1.5 mm², 932890100
Unit Price (€ / pc.)
2.6537 € *
Available: 152 pcs.
Total Price:
2.65 € *
Price list
Quantity
Price per unit*
1 pcs.
2.6537 €
25 pcs.
2.2610 €
100 pcs.
2.0944 €
250 pcs.
1.9873 €
1000 pcs.
1.8088 €
*incl. VAT plus shipping costs
Subject to prior sale
Valve panel plug, GSE 3000 N4,Hirschmann Automation and Control

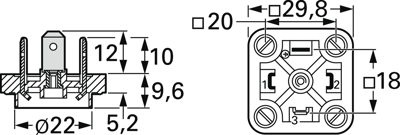

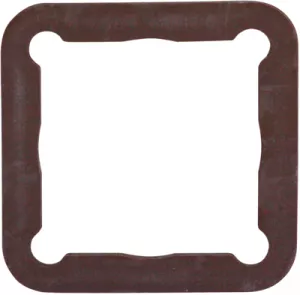

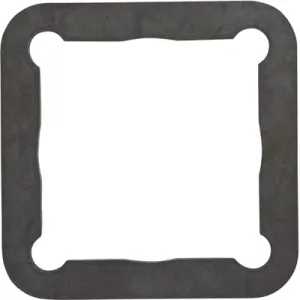

For sheet metal wall mounting (mounting hole diameter 22.5 mm). with solder terminals; Certifications: VDE, SEV. Sealing accessories are described below.
Type: GSE 3000 N4, 3-pole + PE.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| LED display | No | |
| Rated voltage | 400 V | |
| Degree of protection (IP) | IP65 | |
| Pin number | 3 pole + PE | |
| Version | DIN shape A | |
| Type of locking | central screw | |
| Cable cross-section | 0.08-1.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | HU |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
