932886100 | Hirschmann Automation and Control
Valve panel plug, DIN shape A, 2 pole + PE, 400 V, 0.08-1.5 mm², 932886100
Unit Price (€ / pc.)
2.2967 € *
Available: 80 pcs.
Total Price:
2.30 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2967 €
25 pcs.
1.9635 €
100 pcs.
1.8088 €
250 pcs.
1.7017 €
1000 pcs.
1.5589 €
*incl. VAT plus shipping costs
Subject to prior sale
Valve panel plug, GSE 2000 N4,Hirschmann Automation and Control

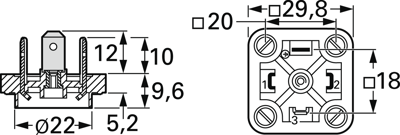

For sheet metal wall mounting (mounting hole diameter 22.5 mm). with solder terminals; Certifications: VDE, SEV. Sealing accessories are described below.
Type: GSE 2000 N4, 2-pole + PE.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | DIN shape A | |
| Cable cross-section | 0.08-1.5 mm² | |
| Pin number | 2 pole + PE | |
| Rated voltage | 400 V | |
| Degree of protection (IP) | IP65 | |
| LED display | No | |
| Type of locking | central screw |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
