932514106 | Hirschmann Automation and Control

Surface-mounting plug, 3 pole, PCB mounting, screw connection, 1.5 mm², gray, 932514106

Order No.: 40F504
EAN: 4099889861228
MPN:
932514106
STASAP 3 N GR
Series: STAS

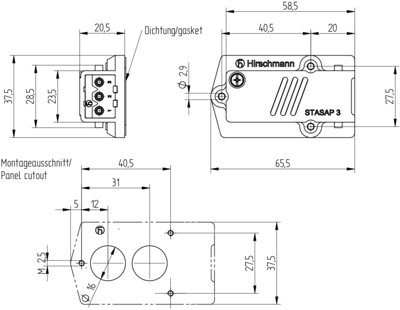

932514106 Hirschmann Automation and Control Device Connectors Image 1

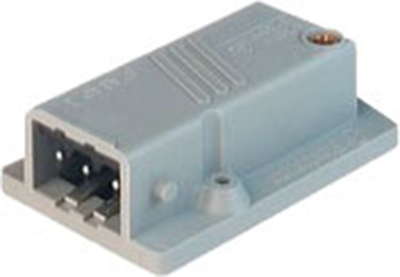

932514106 Hirschmann Automation and Control Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
9.6390 € *
Available: 136 pcs.
Next delivery: 200 pcs. on 2025-10-13
Total Price:
9.64 € *
Price list
Quantity
Price per unit*
1 pcs.
9.6390 €
10 pcs.
8.4847 €
50 pcs.
7.9135 €
150 pcs.
7.5446 €
500 pcs.
7.1757 €
*incl. VAT plus shipping costs
Subject to prior sale

Miniature Connector, 3-pole + PE, type Hirschmann STAS../STAK.

With screw terminals for conductor cross-sections of max. 1.5 mm²; Contacts: CuZn, tin. Housing: PA to UL 94 VDC1, gray. Contact carrier: PA to UL 94 HB. Rated voltage: 250 VDC/400 VAC. Rated current: 10 A DC/16 A AC. Contact resistance: 5.0 mohm. Pin diameter: 2.0 mm. Degree of protection to IEC 60529: IP 54. Degree of soiling: 3. Cable gland: Pg 11. Cable diameters: 6.0 mm to 10 mm. Operating temperatures: –30 °C to +90 °C. Certifications: VDE, SEV, UL.

Surface-mount Connector, type STASAP 3 N.

Type: STASAP 3 N, surface-mount connector

Technical specifications
Filter Property Value
Switch illuminated No
Assembly PCB mounting
Rated voltage UL/CSA 400 V
Rated current UL/CSA 16 A
Cable cross-section 1.5 mm²
Cable diameter 6 to 10 mm
Pin temperature 90 °C
Design straight
Colour gray
Pin number 3 pole
Rated voltage IEC 250 V
Product type surface-mounting plug
Rated current IEC 16 A
Connection screw connection
Power switch available No
Logistics
Property Value
Customs tariff number 85366990
Country of origin CZ
Compliance
Property Value
Substance description Lead
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
