932187015 | Hirschmann Automation and Control
Connection line, Europe, socket STAK 3, straight on open end, H05RR-F4G0.75mm², black, 5 m
Unit Price (€ / pc.)
14.6489 € *
Available: 0 pcs.
Leadtime: 35 Weeks **
Miniature connectors, 3-pole + PE, series ST, type Hirschmann STAS../STAK.
With screw terminals for conductor cross-sections of max. 1.5 mm²; Contacts: CuZn, tin. Housing: PA to UL 94 VDC1, gray. Contact carrier: PA to UL 94 HB. Rated voltage: 250 VDC/400 VAC. Rated current: 10 A DC/16 A AC. Contact resistance: 5.0 mohm. Pin diameter: 2.0 mm. Degree of protection to IEC 60529: IP 54. Degree of soiling: 3. Cable gland: Pg 11. Cable diameters: 6.0 mm to 10 mm. Operating temperatures: –30 °C to +90 °C. Certifications: VDE, SEV, UL.

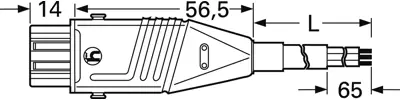

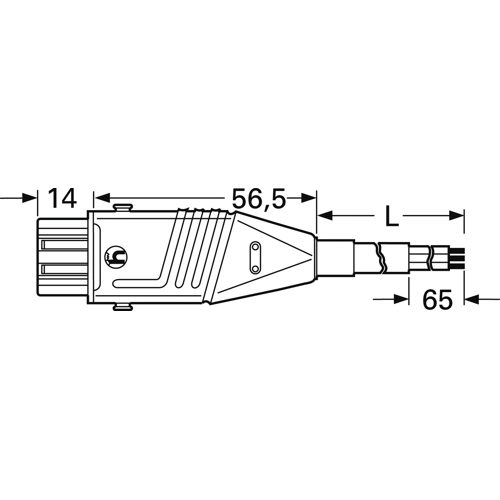

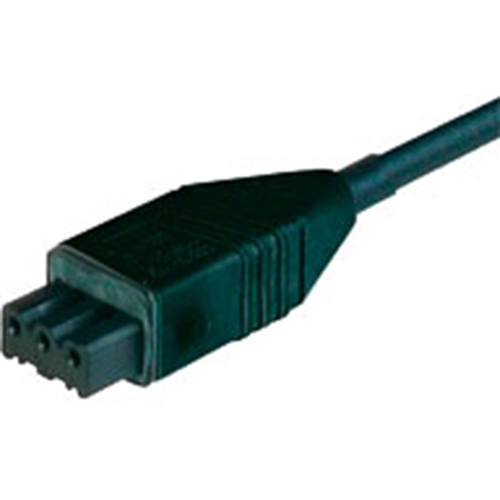

Jacks with molded cable, type STAK 3 K.
With H05RR-F4G0.75 cable and STAK 3 jack; Conductor cross-sections: 0.75 mm². Temperature range of the cable: –25 to +60 °C.
Type: STAK 3 K, with 5.0 m cable
Technical specifications
| Connection (1) | socket STAK 3, straight | |
| Connection (2) | open end | |
| Version | connection line | |
| Colour | black | |
| Cable type | H05RR-F4G0.75mm² | |
| Cable length | 5 m | |
| Country code | Europe | |
| Cable cross-section | 0.75 mm² | |
| Rated current | 10 A |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
