932448100 | Hirschmann Automation and Control

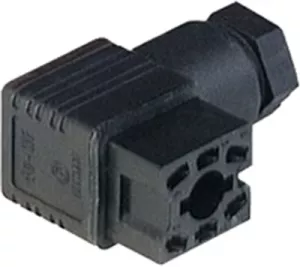

Jack, 6 pole, cable assembly, solder connection, 0.14-0.5 mm², black, 932448100
Angled connectors series G, type Hirschmann GO 6.
Particularly compact device for electrical connections in pneumatic or hydraulic control systems, for sensors and measuring instruments. No ground contacts. For applications in confined spaces with high degree of soiling; Rated voltage: 50 V AC/DC (types GO 60 V AC/DC to 250 V AC/DC. Rated current: max. 6.0 A. The connectors are coded and therefore incompatible with any other operating voltages. With solder terminals for 0.14 to 0.5 mm² conductor cross-sections. Cable outer diameter: 4.0 to 7.5 mm. Cable gland: Pg 7. Degree of protection to IEC 60529: IP 65. Contact resistance: max. 4.0 mohm. Degree of soiling: 3. Contacts: fork spring, type GO 6.. FAV M with multipoint contacts.) Contact finish: tin. Contact block material: PA. Housing material: PA, black. Combustibility to UL 94 V-1. Operating temperatures: –40 to +90 °C. Standards and certifications: DIN VDE 0627, IEC 61984.
Technical attributes (type number of poles, rated voltage): GO 60 WF, 6-pole, 250 V AC/DC
| Filter | Property | Value |
|---|---|---|
| Rated voltage UL/CSA | 50 V | |
| Rated voltage IEC | 50 V | |
| Pin number | 6 pole | |
| Power switch available | No | |
| Colour | black | |
| Rated current UL/CSA | 6 A | |
| Cable cross-section | 0.14-0.5 mm² | |
| Connection | solder connection | |
| Assembly | cable assembly | |
| Pin temperature | 90 °C | |
| Design | angled | |
| Rated current IEC | 6 A | |
| Cable diameter | 4 to 7.5 mm | |
| Switch illuminated | No | |
| Product type | jack |
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | HU |
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
