932145106 | Hirschmann Automation and Control
Panel plug, 3 pole, PCB mounting, screw connection, 1.5 mm², gray, 932145106
Unit Price (€ / pc.)
7.1757 € *
Available: 50 pcs.
Next delivery: 200 pcs. on 2025-11-07
Total Price:
7.18 € *
Price list
Quantity
Price per unit*
1 pcs.
7.1757 €
10 pcs.
6.3070 €
50 pcs.
5.8905 €
150 pcs.
5.6287 €
500 pcs.
5.3312 €
*incl. VAT plus shipping costs
Subject to prior sale

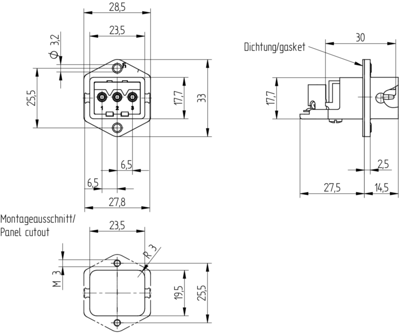

Miniature Connector, 3-pole + PE, type Hirschmann STAS../STAK.
With screw terminals for conductor cross-sections of max. 1.5 mm²; Contacts: CuZn, tin. Housing: PA to UL 94 VDC1, gray. Contact carrier: PA to UL 94 HB. Rated voltage: 250 VDC/400 VAC. Rated current: 10 A DC/16 A AC. Contact resistance: 5.0 mohm. Pin diameter: 2.0 mm. Degree of protection to IEC 60529: IP 54. Degree of soiling: 3. Cable gland: Pg 11. Cable diameters: 6.0 mm to 10 mm. Operating temperatures: –30 °C to +90 °C. Certifications: VDE, SEV, UL.

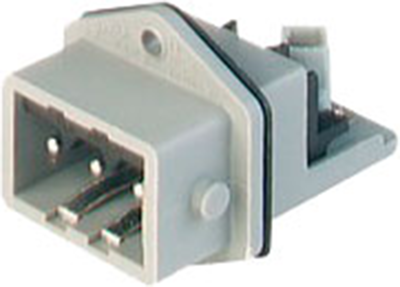

Panel Connector, type STASEI 3 N.
Type: STASEI 3 N, panel connector
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage UL/CSA | 400 V | |
| Rated voltage IEC | 250 V | |
| Pin number | 3 pole | |
| Power switch available | No | |
| Colour | gray | |
| Rated current UL/CSA | 16 A | |
| Cable cross-section | 1.5 mm² | |
| Connection | screw connection | |
| Assembly | PCB mounting | |
| Pin temperature | 90 °C | |
| Design | straight | |
| Rated current IEC | 16 A | |
| Cable diameter | 6 to 10 mm | |
| Switch illuminated | No | |
| Product type | panel plug |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
