932046106 | Hirschmann Automation and Control
Surface-mounting plug, 2 pole, PCB mounting, screw connection, 1.5 mm², gray, 932046106
Miniature Connector, 2-pole + PE, type Hirschmann STAS../STAK.
With screw terminals for conductors to max. 1.5 mm²; Contacts: CuZn, tin. Case: PA to UL 94 V-1, gray. Contact carrier: PA to UL 94 HB. Rated voltage: 250 V AC/DC. Rated current: 10 ADC/16 AAC. Contact resistance: 5.0 mohm. Pin diameter: 2.0 mm. Degree of protection (IEC 60529): IP 54. Degree of soiling: 3. Screwed cable gland: Pg 7. Cable diameter: 4.0 to 6.5 mm. Operating temperatures: - 30 to +90 °C. Certifications: UL, VDE, SEV. Not compatible with connectors with end numbers 2 and 20.

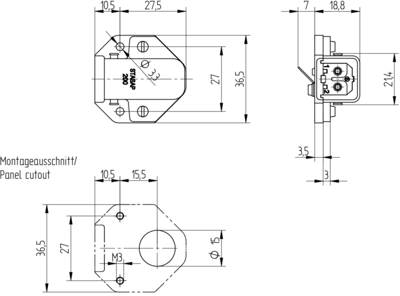

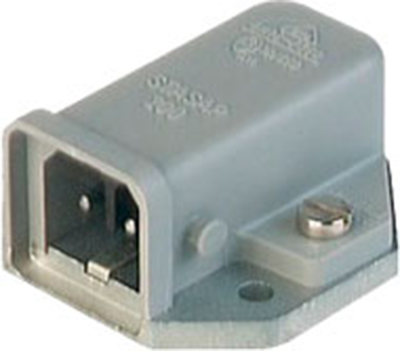

Surface-mount connectors with strain relief and coding fin, type STASAP 200.
Additional sealing measures have to be taken at the installation location in order to reach degree of protection IP 54.
Type: STASAP 200, surface-mount connector
| Filter | Property | Value |
|---|---|---|
| Switch illuminated | No | |
| Assembly | PCB mounting | |
| Rated voltage UL/CSA | 250 V | |
| Rated current UL/CSA | 16 A | |
| Cable cross-section | 1.5 mm² | |
| Cable diameter | 4 to 6.5 mm | |
| Pin temperature | 90 °C | |
| Design | straight | |
| Colour | gray | |
| Pin number | 2 pole | |
| Rated voltage IEC | 250 V | |
| Product type | surface-mounting plug | |
| Rated current IEC | 16 A | |
| Connection | screw connection | |
| Power switch available | No |
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CZ |
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
