HR10A-7P-6S(73) | HIROSE

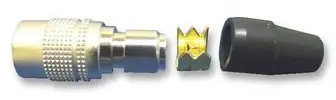

Plug, 6 pole, solder cup, push pull, straight, HR10A-7P-6S(73)
Unit Price (€ / pc.)
15.9936 € *
Available: 243 pcs.
Total Price:
15.99 € *
Price list
Quantity
Price per unit*
1 pcs.
15.9936 €
10 pcs.
14.0896 €
50 pcs.
13.1257 €
150 pcs.
12.5307 €
500 pcs.
11.9119 €
*incl. VAT plus shipping costs
Subject to prior sale
Circular connector with push-pull lock, type Hirose HR10.
Solder terminals; Dielectric strength: 300 VAC/min. Current rating: 2.0 A. Insulation resistance: 1.0 Gohm. Contact resistance: max. 10 mohm.
Circular connector with plastic bushing, type HR10A.
Contacts: gold-plated.
Plug, straight.
Technical attributes (type, number of poles): HR10A-7P-6S(73), 6-pole
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Type of locking | push pull | |
| Cable cross-section | 11.5 mm² | |
| Assembly | panel mounting | |
| contact surface | silver-plated | |
| Version | plug | |
| Contact connection | solder cup | |
| Pin number | 6 pole | |
| Cable diameter | 5 mm | |
| Shell Material | metal |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
