3122 | HEYCO
Grommet, cabel-Ø 26.9 mm, nylon, black
Order No.: 12H5733
MPN:
3122
Unit Price (€ / pc.)
0.2832 € *
Available: 0 pcs.
Leadtime: On Request **

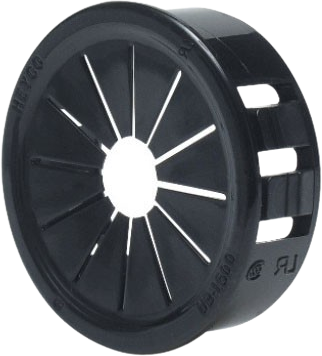

Grommet, 3122, HEYCO
Grommet for use in mounting panels up to .250" thick.
Features
- Flexible shutters to absorb vibration on the inside diameter
- Insulate and mechanically protect electrical and telecommunications cables, tubing, hose, rope, and utility lines
- Withstand a push back force of 35 pounds
- Locking fingers snap into holes with fingertip pressure
Technical specifications
Version | grommet | |
Colour | black | |
Material | nylon | |
max. Cable diameter | 26.9 mm | |
max. operating temperature | 105 °C | |
min. operating temperature | -18 °C | |
Mounting hole size | 38.1 mm | |
Wall thickness | 6.4 mm |
Download
Logistics
Country of origin | US |
Compliance
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | Yes |
