2844 | HEYCO

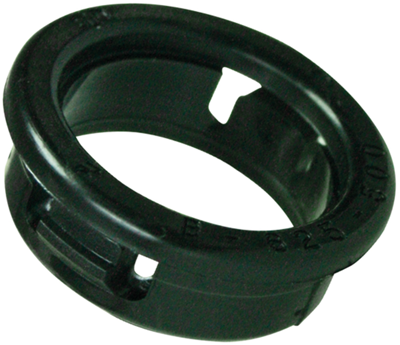

Grommet, Polyamide 6.6, 15.9 mm, 19.8 mm
Active
Product by HEYCO at Bürklin Elektronik
Grommets, type Heyman B 28.
Black, compact version, interlocking. Made of polyamide 6.6. Combustibility to UL 94 V-2; Operating temperatures: max. +105 °C. Certifications: UL, CSA.

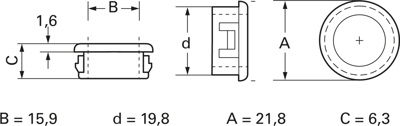

Technical attributes (type, max. cable diameter (CD), mounting hole diameter (d), collar diameter (A), overall length (C)): 2844, CD 15.9, d 19.8, A 21.8, C 6.3 mm
| Version | Grommet | |
| Colour | black | |
| Material | polyamide | |
| max. Cable diameter | 15.9 mm | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -18 °C | |
| Mounting hole size | 19.8 mm |
| Country of origin | US |
| Customs tariff number | 39269097 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
