2820 | HEYCO

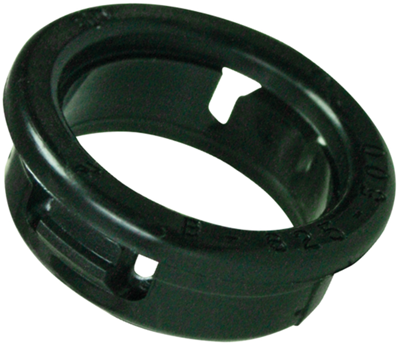

Grommet, cable Ø 9.5 mm, PA, black, 2820
Order No.: 12H7516
EAN: 4099891196165
MPN:
2820
Unit Price (€ / pc.)
0.0916 € *
Standard delivery time from the manufacturer is: On Request
Grommets, type Heyman B 28.
Black, compact version, interlocking. Made of polyamide 6.6. Combustibility to UL 94 V-2; Operating temperatures: max. +105 °C. Certifications: UL, CSA.

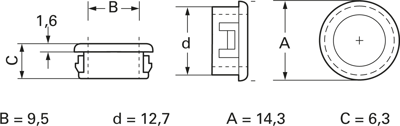

Technical attributes (type, max. cable diameter (CD), mounting hole diameter (d), collar diameter (A), overall length (C)): 2820, CD 9.5, d 12.7, A 14.3, C 6.3 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 105 °C | |
| min. operating temperature | -18 °C | |
| Colour | black | |
| Material | PA | |
| Mounting hole size | 12.7 mm | |
| max. Cable diameter | 9.5 mm | |
| Product type | grommet |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
