Cable gland, M4458, HEYCO

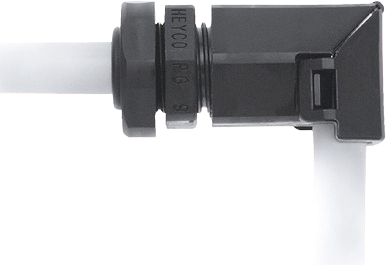

Right angle, metric hub with integral sealing ring. Cordgrip is molded in the open position for ease of installation. After cable insertion, the fitting snaps closed, bending the cable without damage. This assembly method saves considerable time and money.
Features
- Integral sealing ring ensures a superior seal at the clearance or threaded mounting hole location, every time
- All nylon construction with Buna N or TPE sealing gland resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents
- Approved for NEMA 4, 4X, 6 and 6P applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. clamping range | 11.4 mm | |
| Product type | cable gland | |
| Thread size | M20 | |
| Length | 56.1 mm | |
| max. operating temperature | 115 °C | |
| Degree of protection (IP) | IP68 | |
| min. operating temperature | -40 °C | |
| Material | PA/TPE | |
| Colour | black | |
| min. clamping range | 4.3 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
