M4450 | HEYCO
Cable gland, M12, Clamping range 2.9 to 6.4 mm, IP68, black, M4450
Order No.: 12H5603
MPN:
M4450
Unit Price (€ / pc.)
3.2844 € *
Available: 0 pcs.
Leadtime: 5 Weeks **

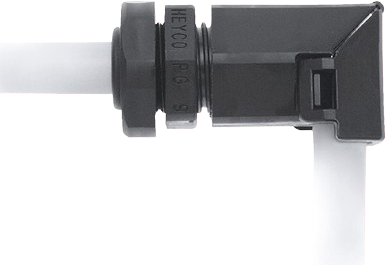

Cable gland, M4450, HEYCO
Right angle, metric hub with integral sealing ring. Cordgrip is molded in the open position for ease of installation. After cable insertion, the fitting snaps closed, bending the cable without damage. This assembly method saves considerable time and money.
Features
- Integral sealing ring ensures a superior seal at the clearance or threaded mounting hole location, every time
- All nylon construction with Buna N or TPE sealing gland resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents
- Approved for NEMA 4, 4X, 6 and 6P applications
Technical specifications
| Version | cable gland | |
| Colour | black | |
| Thread size | M12 | |
| Length | 38.8 mm | |
| Material | Nylon/TPE | |
| max. clamping range | 6.4 mm | |
| max. operating temperature | 115 °C | |
| min. clamping range | 2.9 mm | |
| min. operating temperature | -40 °C | |
| Degree of protection (IP) | IP68 |
Download
Logistics
| Country of origin | US |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
